Classic german book timetables

A classic-styled alternative to my popular Ebula-inspired timetables, appropriate for older routes.

Routes

Currently contained routes are:

• LFR: Mainz - Koblenz

Paged and continuous versions are both available, depending if you want to print it or scroll on a screen.

Format

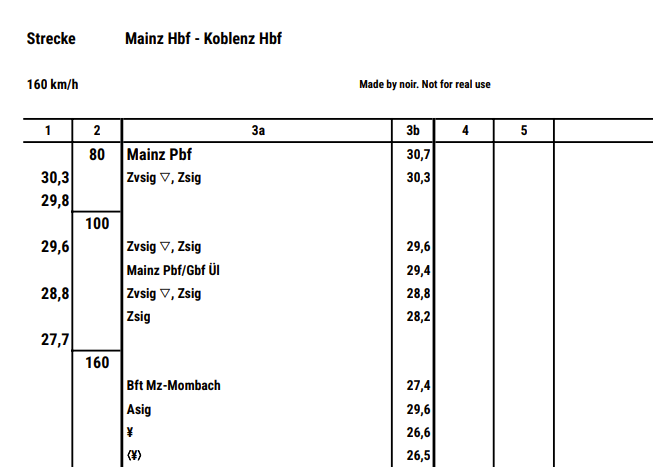

This format more closely follows Ril 408.23 and is another step closer to real-life documents than my Ebulas that are sometimes simplified.

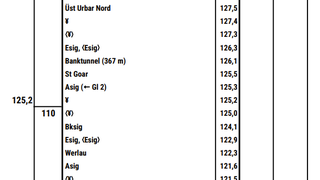

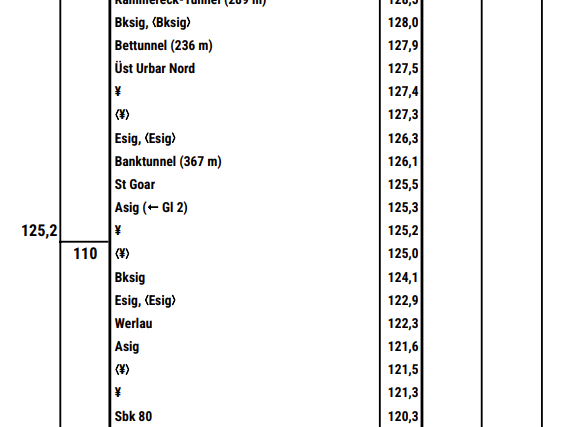

Columns 1 and 3b contain hectometer information about location where a point of interest is located. This point of interest is then marked in column 2 (for line speed changes) or column 3a (for stations, signals, ends of junctions, etc).

List of symbols and shortcuts for better understanding:

• Esig, Zsig, Asig - entrance, intermediate and exit signals of a station
• Bksig, Sbk - block and self-blocking signals on open route
• ¥ - end of junctions and signal speed restrictions
• ❬¥❭, ❬Esig❭ - this symbol applies for travelling on opposite track
• ❬Ls❭, ❬Ls ⭢❭ - blocking signal guading opposite track, arrow indicates opposite than usual placement
• Avsig ▽ - presignal for Asig is located on insufficient braking distance
• (Asig) - only valid for selected tracks other than the main through track
